Australia Standard AS1530.3 Fire Rated XPE Foam Heat Barrier

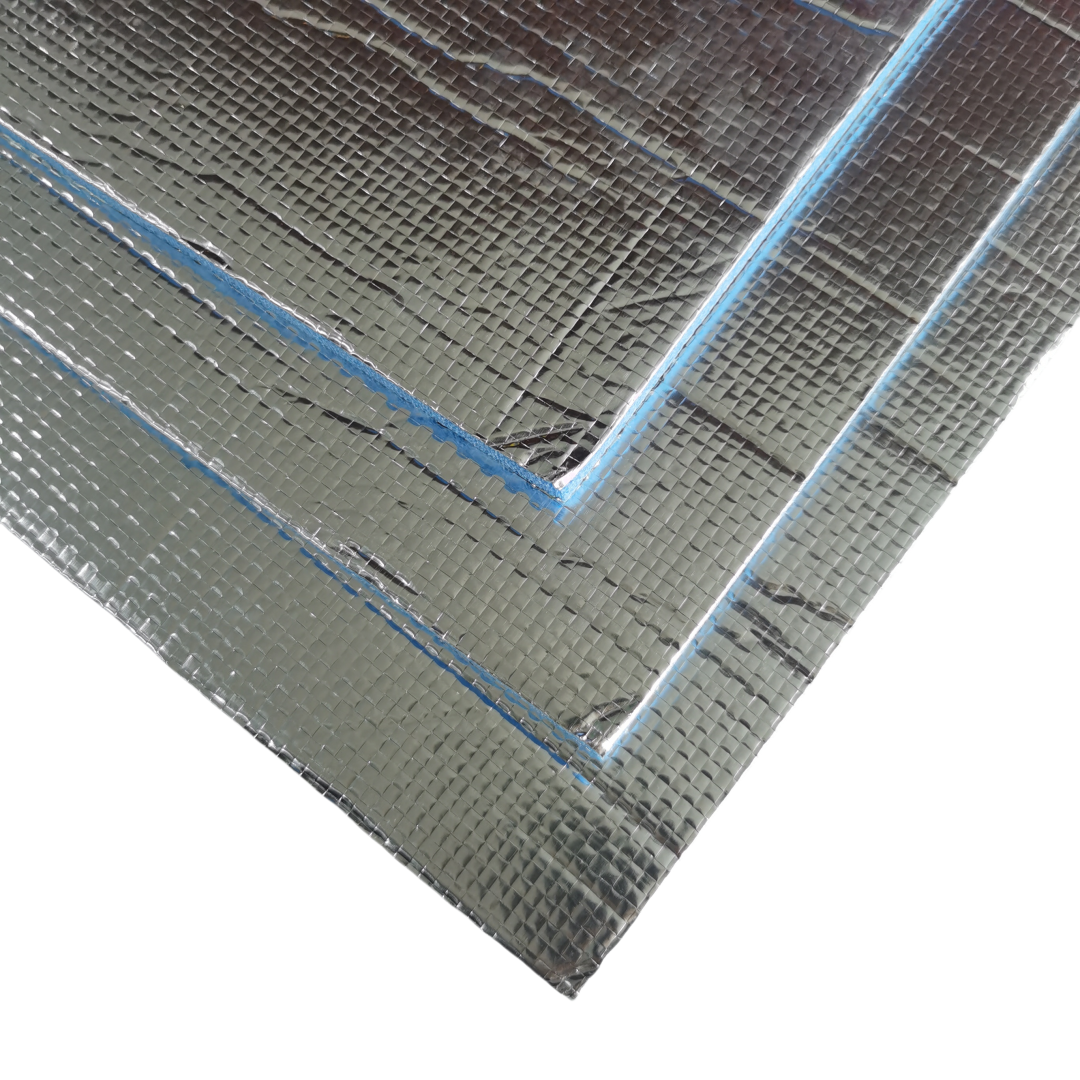

XPE Foam Heat Barrier is chemically cross-linked polyolefin foam with factory applied aluminum foil and aluminum PE woven.
Product Attachments:
Keyword:
XPE Roof Insulation
Heat barrier
Roofing insulation
Heat reflective
Thermal insulation
Thermal barrier
AS1530-3 XPE foam
Keywords: Australia Standard AS1530.3 Fire Rated XPE Foam Heat Barrier
Category:
- DESCRIPTION
-

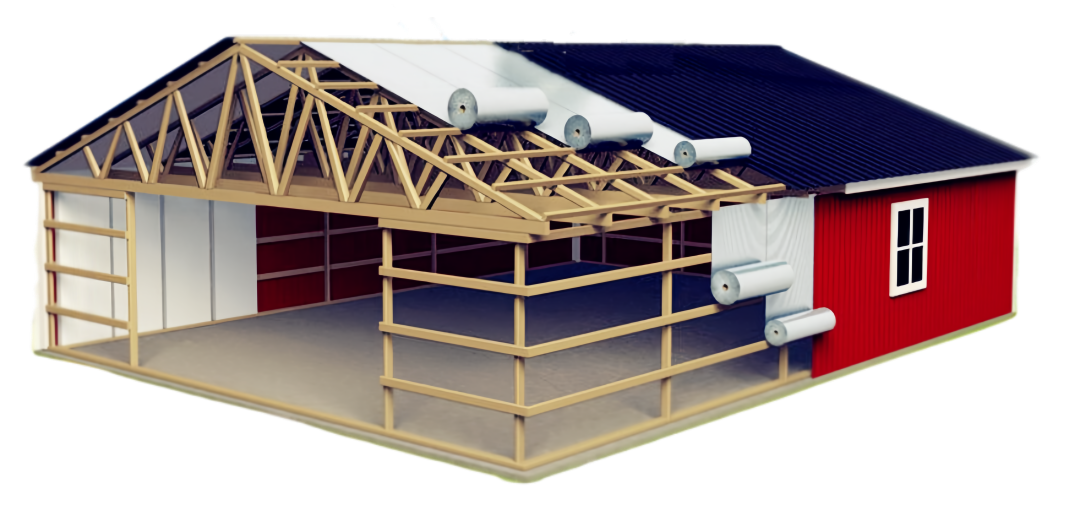

CF XPE heat barrier is supplied with factory applied one side embossed aluminum foil facing the other side aluminum PE woven. It is used for heat insulation in roof, wall, attic, balcony, steel structure building, wine cellar, etc
TECHNICAL PROPERTIESPROPERTIES VALUE Surface density 25-28 kg/m3 Structure Alu./Closed cell XPE foam/Alu.PE woven Thermal conductivity 0.032 W/m*K(@ 23±2℃) Moisture resistance ≥ 20000 Water vapour permeability ≤ 2.3 x 10-15 kg/(Pa.s.m) Water absorption by volume < 0.1% Dimension stability 0.66% Rebound rate 96% Ozone resistance Excellent Aging resistance(150h) Excellent Ripping intension 3.3 N/cm Fire rating options Class 0, Class 1 (BS476 Part 6 & 7) HBF, HF-2, HF-1 (UL94) AS1530.3 (AS1530) Reach directives SVHC ≤ 0.07(Complies) Operating tempreature -50 °C ~ +90 °C APPLICATION
- Roofing Heat insulation & Thermal reflection
- Floor Heat insulation & Thermal reflection
- Wall Heat insulation & Thermal reflection
Sizes and loading quantity
06 mm x 1.2 m x 40 m, 188 rolls/40' HQ
08 mm x 1.2 m x 30 m, 188 rolls/40' HQ
10 mm x 1.2 m x 25 m, 188 rolls/40' HQ
12 mm x 1.2 m x 20 m, 188 rolls/40' HQ
