- DESCRIPTION
-

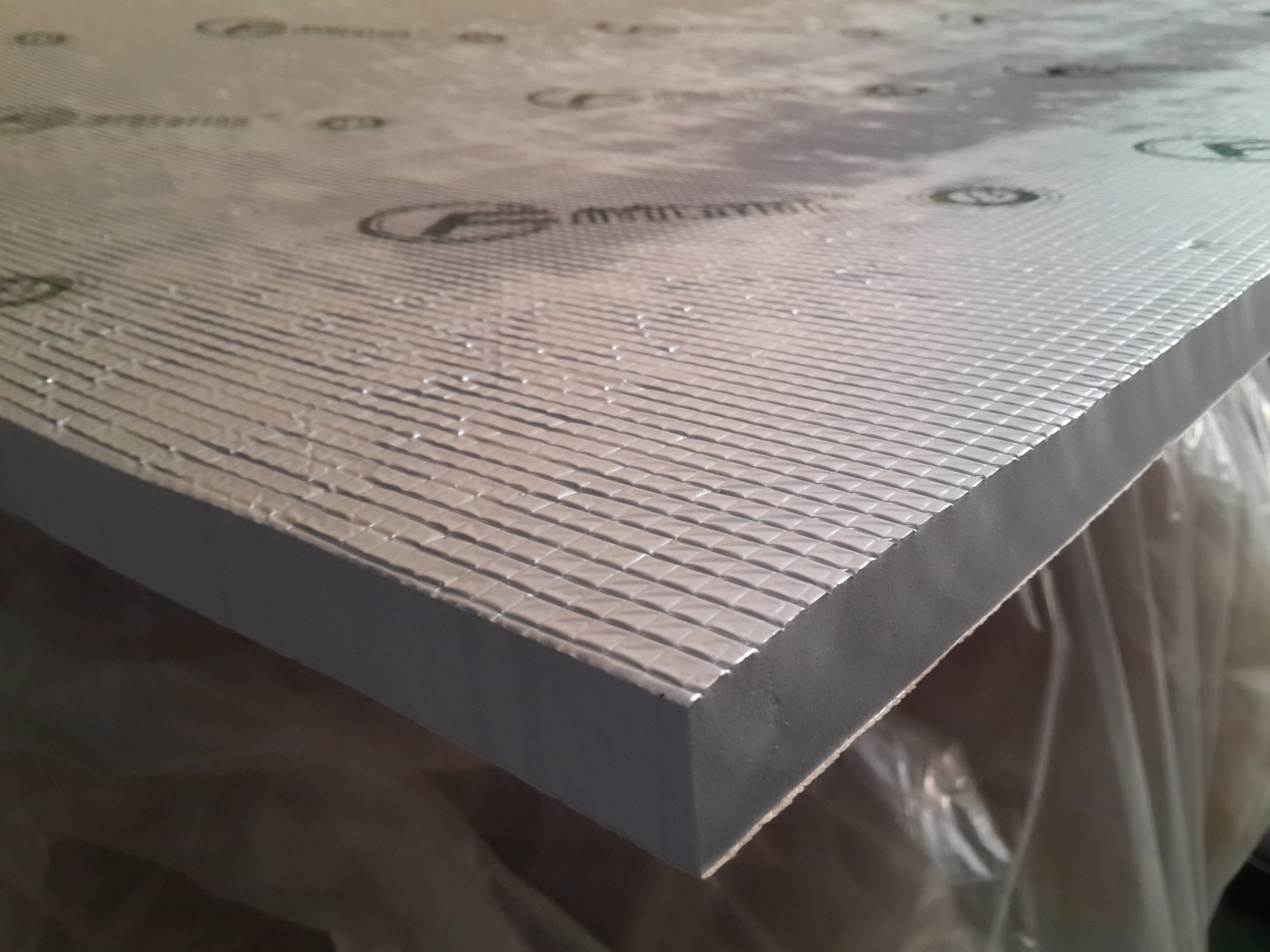

CF-PEF adopted the latest rubber-plastic modify tech in the world and introduced into the world-leading perpetual aluminum foil composite technology and the relevet equipments.
The raw material is polyethylene (PE), it have no PVC, gives out low smoke and non-toxic matter, you can use it safely. The product's heat insulation and vapor barrier performance is greatly improved from the common rubber foam material.
1. The 100% indenpendent closed micron-cell inner structure that allows the lowest water absorption and vapor permeability. The average diameter of the pores is about 50 microns, which means in 1 mm thickness material there arranges 20 layers cells.
2. Perpetual aluminum foil composite technology improves the performance ulteriorly and prolongs the using time.
3. The tested thermal conductivity coefficient is 0.0327 W/m*K at the average temperature 10 ℃.
R-value of 13 mm thickness: 0.40 m2*K/W
R-value of 20 mm thickness: 0.61 m2*K/W
R-value of 25 mm thickness: 0.76 m2*K/W
4. Moisture resistance μ ≥ 20000
5. Water absorption 0.0019 g/cm3
6. Fire retardant: UL94 (HBF, HF-2, HF-1), GB 8624 (B1)
7. Application: public facilities, business buildings, marketing buildings, hospitals, medical, ectrical and other workshops, etc.
SHEET SERIES THICKNESS SHEET SIZE CF-PEF09 09 MM 1.20 M x 2.40 M CF-PEF13 13 MM 1.20 M x 2.40 M CF-PEF20 20 MM 1.20 M x 2.40 M CF-PEF25 25 MM 1.20 M x 2.40 M CF-PEF32 32 MM 1.20 M x 2.40 M CF-PEF38 38 MM 1.20 M x 2.40 M CF-PEF50 50 MM 1.20 M x 2.40 M
