Pre Insulated Phenolic Foam Duct Panel

Product Attachments:

Keyword:

Keywords: Pre Insulated Phenolic Foam Duct Panel

Category:

CF - TOOLS

Inquire

Contact

DESCRIPTION

Pre-insulated phenolic duct panel is high strength panel, which takes the phenolic foam as the core material with reinforcing the aluminum foil on both sides. It is non-combustible material, which has no smoke and innocuity while catching fire and the bending strength reaches over 1 Mpa and the thermal conductivity index reaches 0.025 W/M*K.

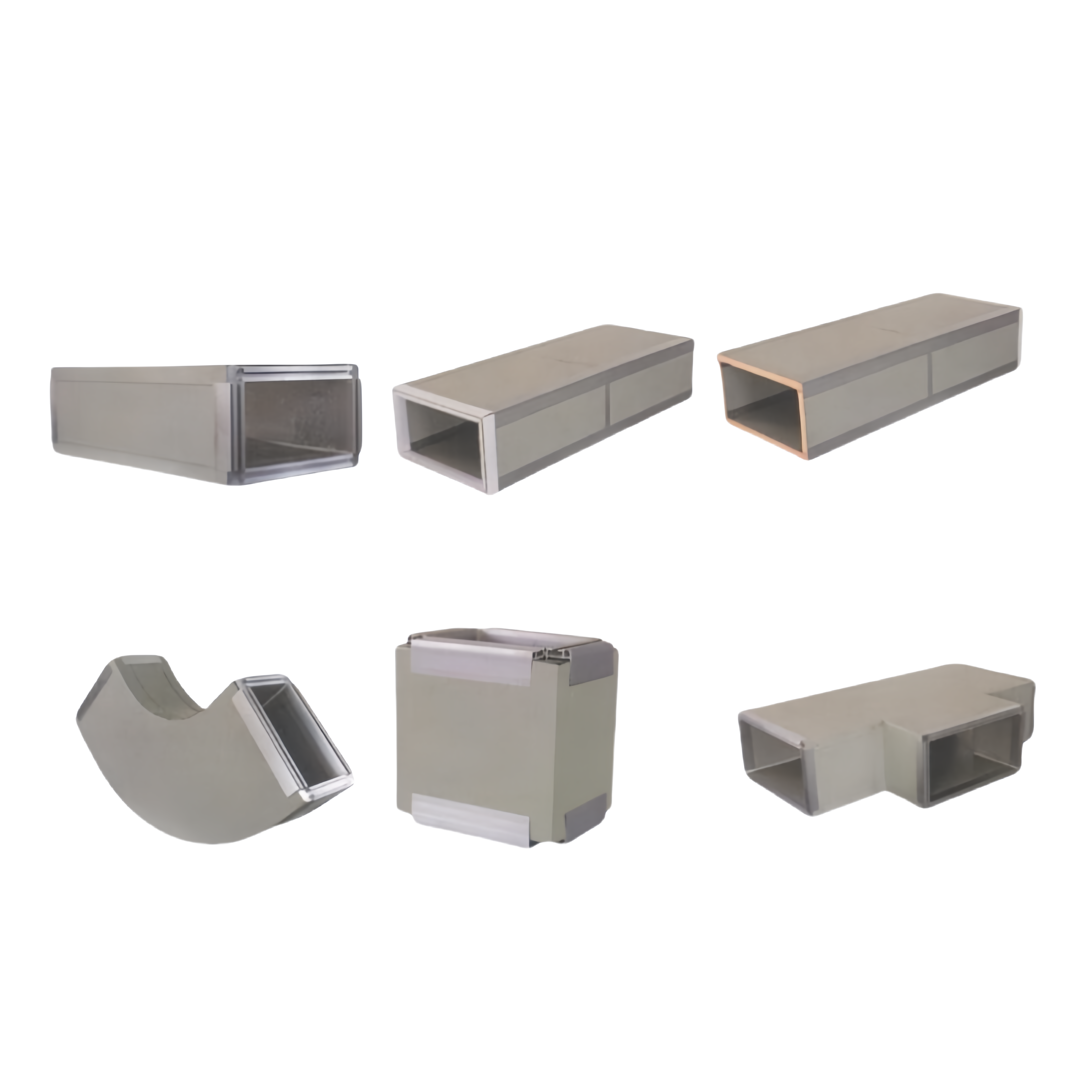

Air duct system feature:

1. Low heat conductivity, energy saving

2. Light weight

3. CFC/HCFC free, Zero ODP enviroment friendly

4. Fire resistant BS476 part 6 and 7

5. Excellent sound absorption performance

6. Moisture proof and microbial growth prevention

Application field:

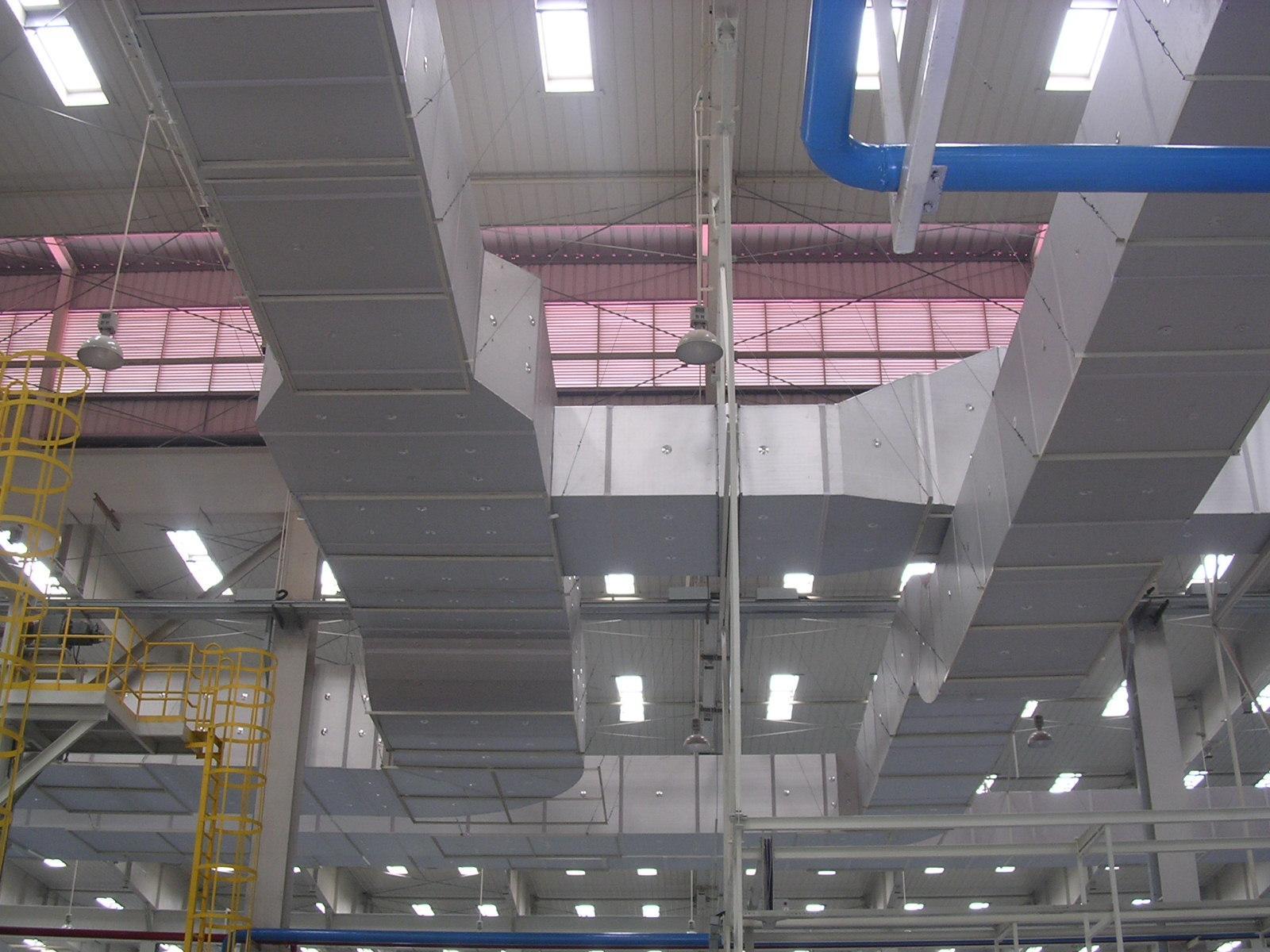

* Central air conditioning ducts,

* Hot and chilled transportation pipelines,

* Clean rooms,

* Shopping malls,

* Light and fast moving rooms,

* Cold storage rooms,

* Refrigerated trucks,

* Airplanes, ships,

* Hotels, and entertainment cabins, etc

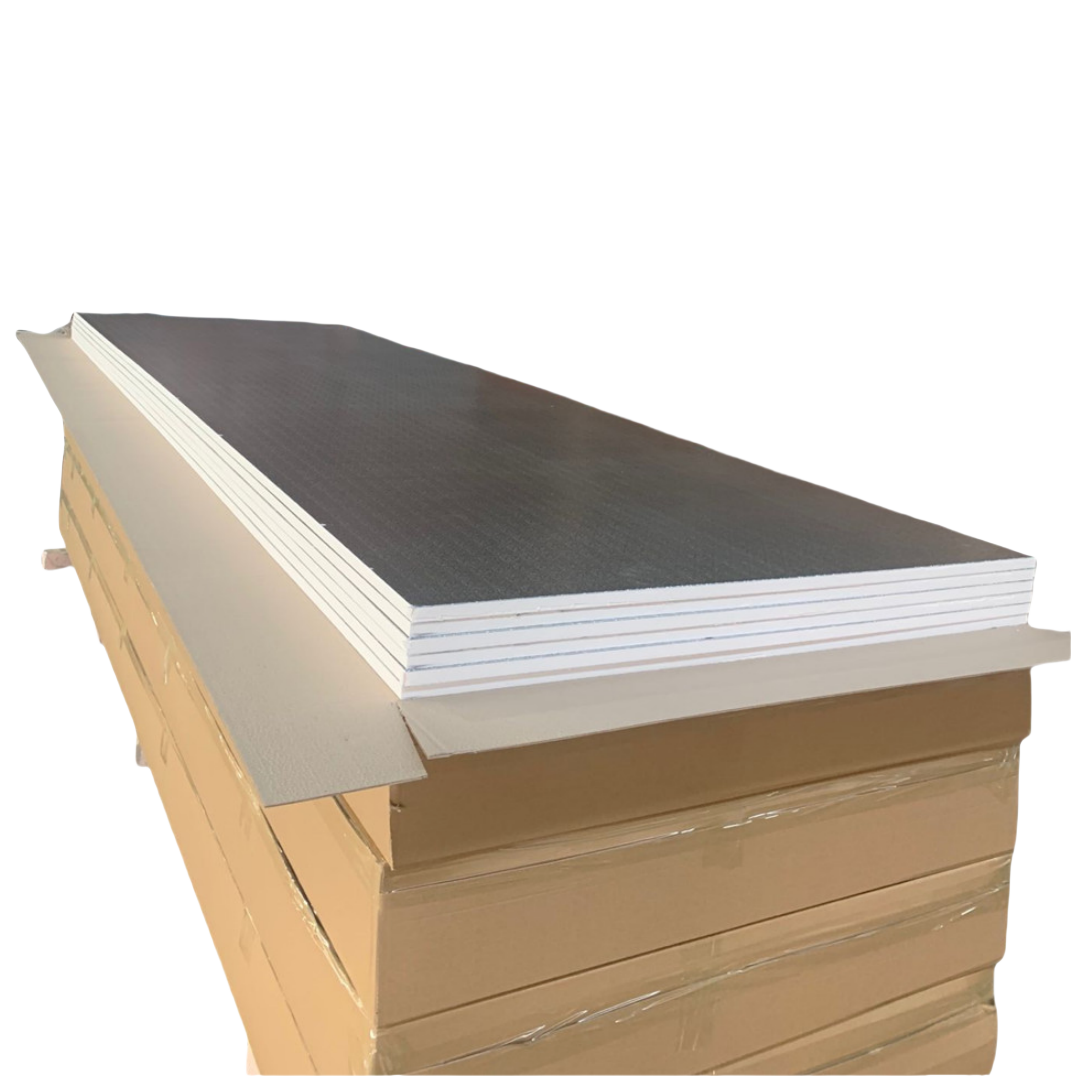

Size and loading quantity:

Thickness: 20 mm

Size 1: 3950 mm x 1200 mm, 10 sheets/carton, 66 cartons/40ft HQ

Size 2: 2900 mm x 1200 mm, 10 sheets/carton, 40 cartons/20ft GP

Thickness: 25 mm

Size 1: 3950 mm x 1200 mm, 8 sheets/carton, 66 cartons/40ft HQ

Size 2: 2900 mm x 1200 mm, 8 sheets/carton, 40 cartons/20ft GP


Parameter	Unit	Data
Aluminum thickness	Micron	80
Density of foam core	kg/m3	50 to 60
Thermal conductivity	W/m*K	0.025
Compressive strength	Mpa	0.25
Combustibility	BS476 Part 6, 7	Class O
Water absorption	%	1.9
Max smoke density	%	2
Tempreture range	℃	-200 to 150
Oxygen index	%	52
Structure		Al/Phenolic/Al
