CF Rubber Foam Insulation Sheet with Self Adhesive
Density 40-45kg/m3, Fire Rating Class O
Product Attachments:
cfinsulation
cf ruba
thermal insulation
air conditioning ducting insulation
rubber foam insulation
adhesive insulation sheet
Keywords: CF Rubber Foam Insulation Sheet with Self Adhesive
- DESCRIPTION
-
CF-FLEX NITRILE DUCT INSULATION is an NBR/PVC-based closed cell, flexible elastomeric foam insulation. It is environmentally-friendly as it is free of CFCs, HFCs, HCFCs, PBDEs, formaldehyde and fibers. An EPA-registered antimicrobial agent is incorporated into the product providing additional protection against mold, fungal and bacterial growth.

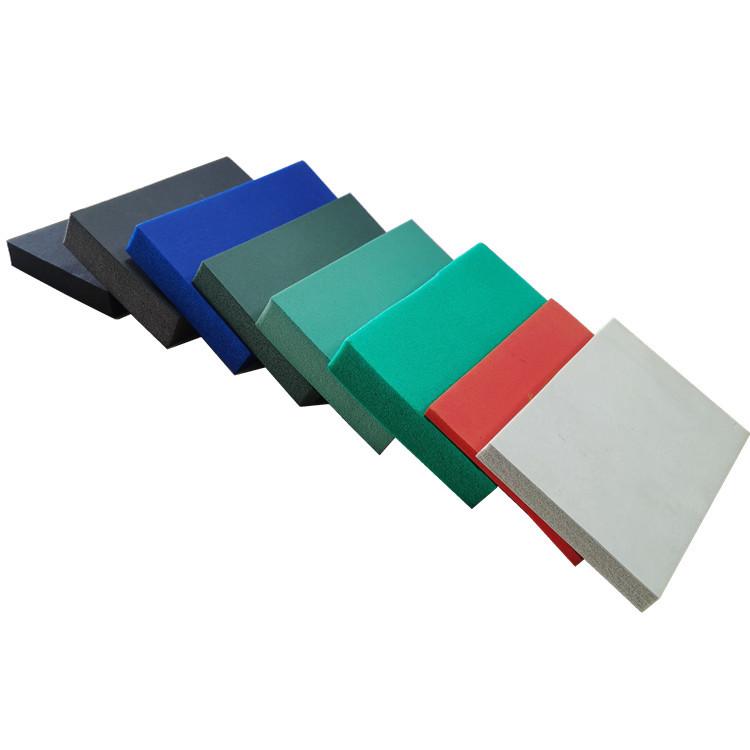

CF-FLEX NITRILE DUCT INSULATION is black in color generally, but can also be customized in various colors according to your needs. Thickness ranges from 1/4” up to 2”, width ranges from 1m to 1.5m, and length range is subject to variation depending on thickness.
Product ParametersPROPERTY TEST METHOD VALUE Density GB/T 6343 40-65 kg/m3 (2.5-4 lbs/cu-ft) Thermal conductivity GB/T 10294 0.031 w/m*k @-20℃ 0.034 w/m*k @ 0℃ 0.036 w/m*k @+20℃ Water vapor permeability GB/T 17146 1.6 x 10-11 g/(m-s-pa) Moisture resistance factor GB/T 17146 12,000 Water absorption ration in vacuum GB/T 17794 < 2% Fire Propagation BS 476-6, BS476-7 Class 0, Class 1 Combustibility grade GB/T 8624 B1 Oxygen index GB/T 5454 35 SDR GB/T 8627 56 Dimension stability, 105±3℃, 7d GB/T 8811 7% Crack resistance GB/T 10808 2.76 N/cm Ozone Resistance, 202Mpa 200h GB/T 7762 No cracking Odor Emissions ASTM C1304 No objectionable odor Chemical/Solvent/Oil/Grease Resistance Good Flexibility ASTM D1056 Excellent Mildew Growth Resistance/Air Erosion UL 181, ASTM G21 Pass Aging resistance GB/T 16259 No cracks, no pin holes, not deforming Sound Transmission Class (1”) ASTM E90 13 Service temperature GB/T 17794 -40-110 °C (-40-230 °F) BS476 PART 6 & 7, CLASS 0 & 1, Fire Propagation: Sub index ≤ 6, Total index ≤ 12
GB 8624-2012, B1 (C-s3, d0, t1) , Oxygen index > 32, SDR: 56
It is acceptable for duct/plenum applications. Numerical flammability ratings alone may not define the performance of products under actual fire conditions. They are provided only for use in the selection of products to meet limits specified when compared to a known standard.
Product Application
- Duct insulation
- Chilled water pipe insulation
- Air conditioning insulation
- Hot water pipe insulation
- Roofing insulation
- Solar system insulation
- Auto system insulation
Size Options
- 03 mm x 1.2 m x 30 m/roll, 520 rolls/40' HQ
- 06 mm x 1.2 m x 30 m/roll, 260 rolls/40' HQ
- 10 mm x 1.2 m x 20 m/roll, 235 rolls/40' HQ
- 13 mm x 1.2 m x 15 m/roll, 235 rolls/40' HQ
- 15 mm x 1.2 m x 13 m/roll, 235 rolls/40' HQ
- 20 mm x 1.2 m x 10 m/roll, 235 rolls/40' HQ
- 25 mm x 1.2 m x 08 m/roll, 235 rolls/40' HQ
- 32 mm x 1.2 m x 06 m/roll, 235 rolls/40' HQ
- 38 mm x 1.2 m x 05 m/roll, 235 rolls/40' HQ
- 50 mm x 1.2 m x 04 m/roll, 235 rolls/40' HQ

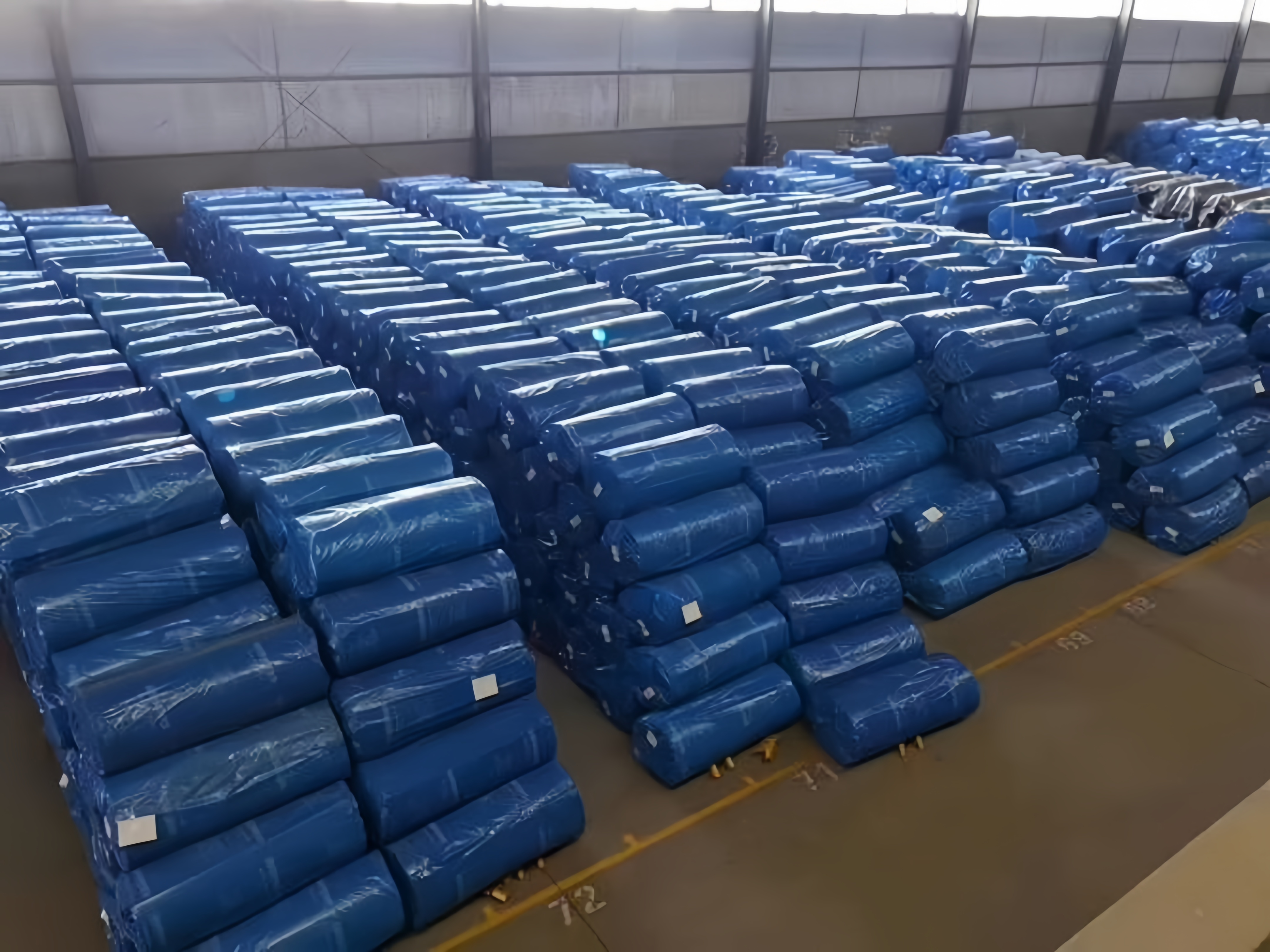

Packaging
By plastic bags.
